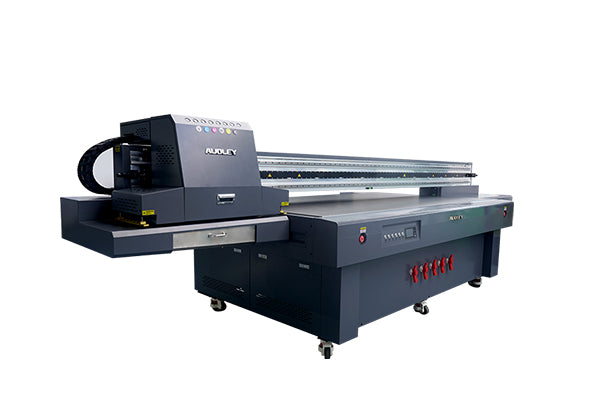

2513 UV Flatbed Printer
In Stock
2.5m x 1.3m Large-Format UV Flatbed Printer, 2-12 Print Heads Customizable: Color-White-Varnish / Color-White-Color / etc. configurations... Optional vision positioning system available.
Package Size
475*222*145cm
Weight
850KG
1 Year Warranty Lifetime Support Global Shipping
Product Overview
2.5m x 1.3m Large-Format UV Flatbed Printer, 2-12 Print Heads Customizable: Color-White-Varnish / Color-White-Color / etc. configurations... Optional vision positioning system available.
Technical Specifications
| Main Specification | |
| Printhead | 4 original Ricoh Gen6 print head |

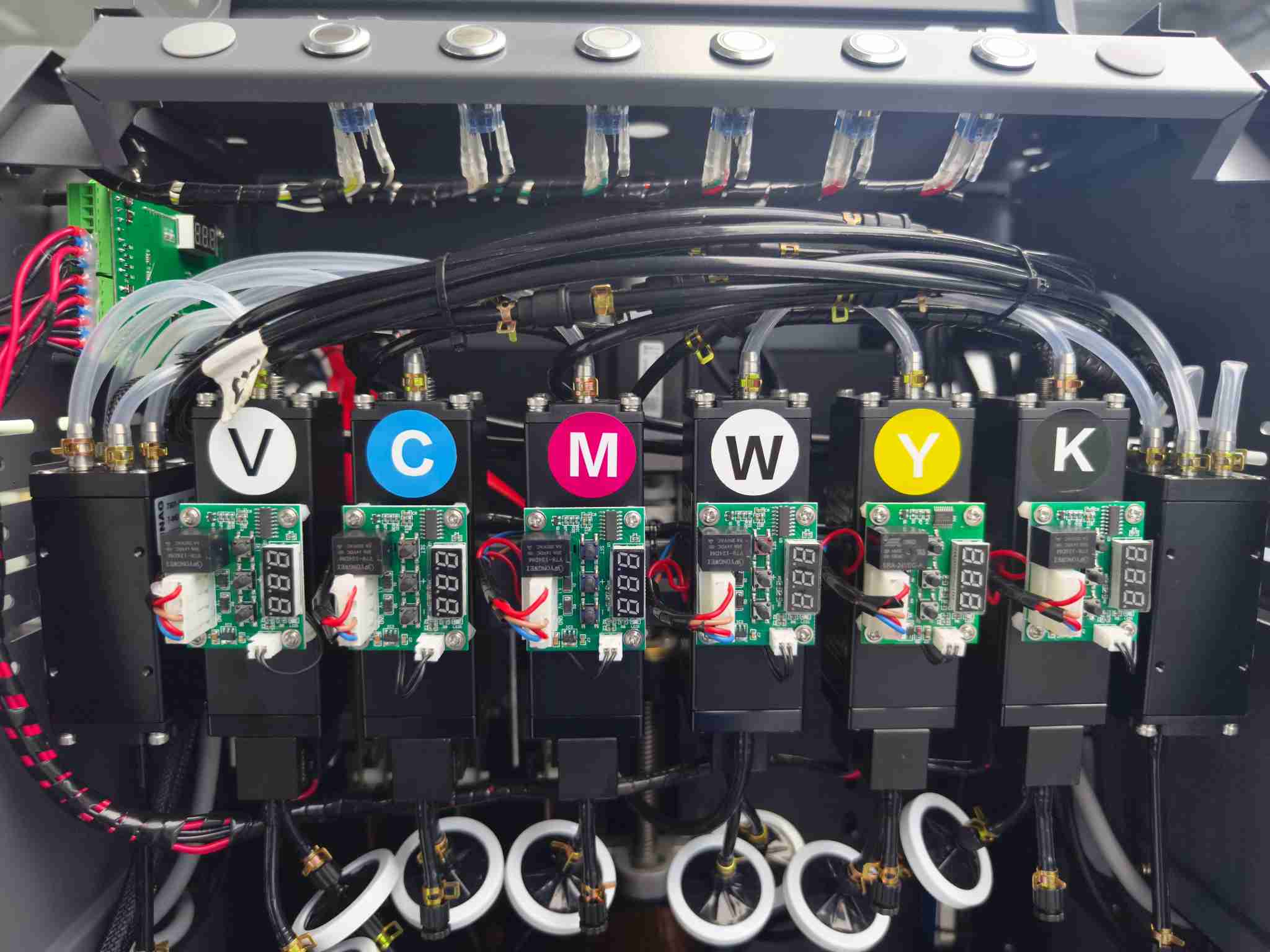

| Ink colors | C/M/Y/K(2 heads) + W(1 head)+V(1 Head) |
| RIP software | Photoprint |
| Cooling system | UV solidified water cycle |
| Board | Shanghai Royal, (Special board designated by Japan Ricoh) |
| Print size | 2500*1300mm |
| New function | Automatically measure the thickness of printing materials, and print height more accurately |
| Max Printing hight | 100mm |
| Max print speed | Draft mode: 28m²/h |
| Standard model: 21m²/h | |
| High precision model: 14m²/h | |
| Package | 440 *220*170cm(LxWxH) |
| Gross Weight | 2000KG |
System Requirements
| CPU | Intel Core i9-10900K or above, or equivalent AMD |
| Memory | 32GB or above |
| Motherboard | Z490 or equivalent (min. 2 free PCIE slots, X4 lane support) |
| Storage | M.2 SSD 1TB or 500GB×2 (SSD preferred) + 1TB HDD |
| OS | Win7-64bit / Win10-64bit / Win11-64bit |
| Network | Gigabit Ethernet (Gigabit/GBE/10/100/1000M) |
| USB | Onboard USB 2.0 + USB 3.0/3.2 |

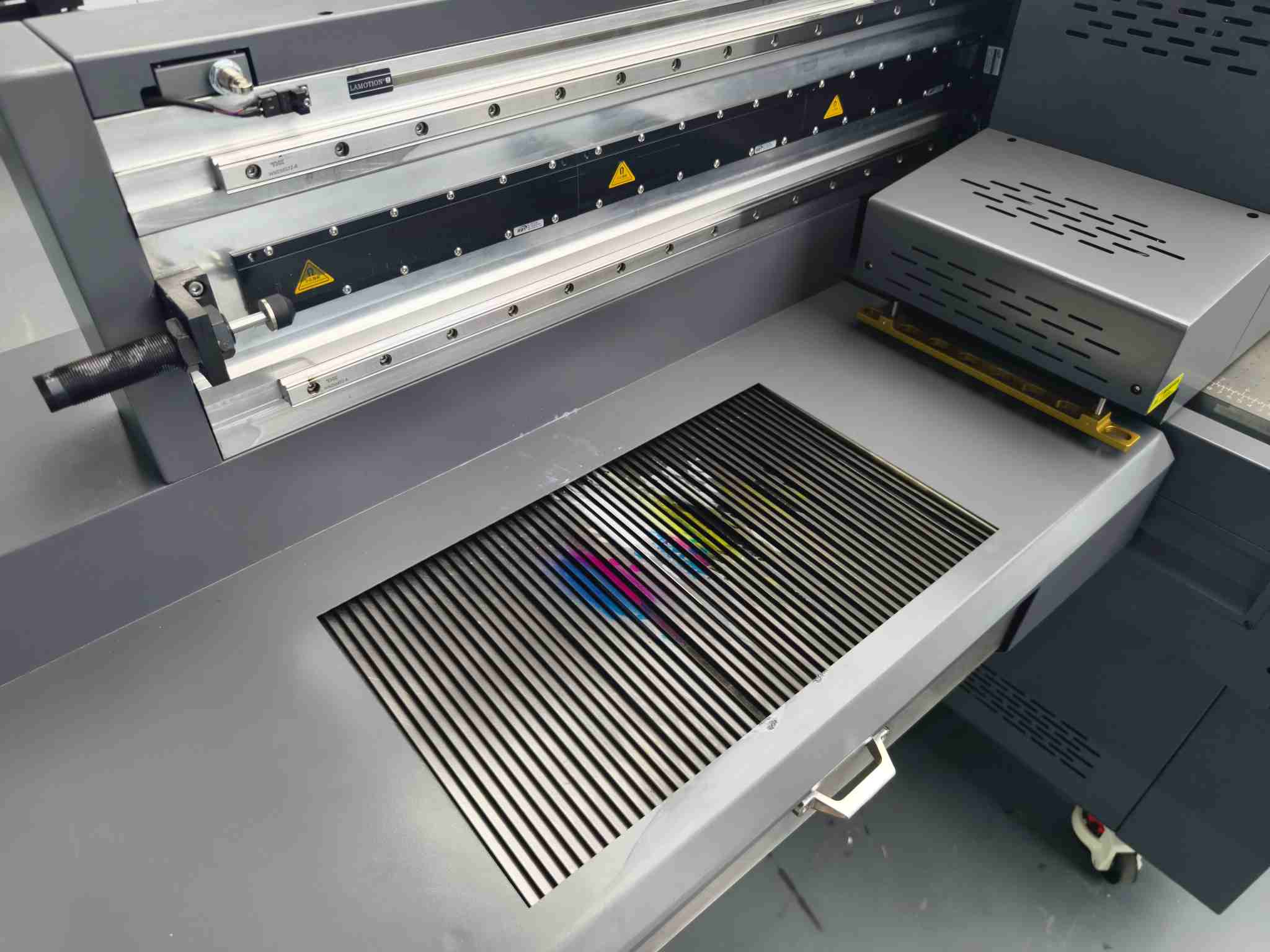

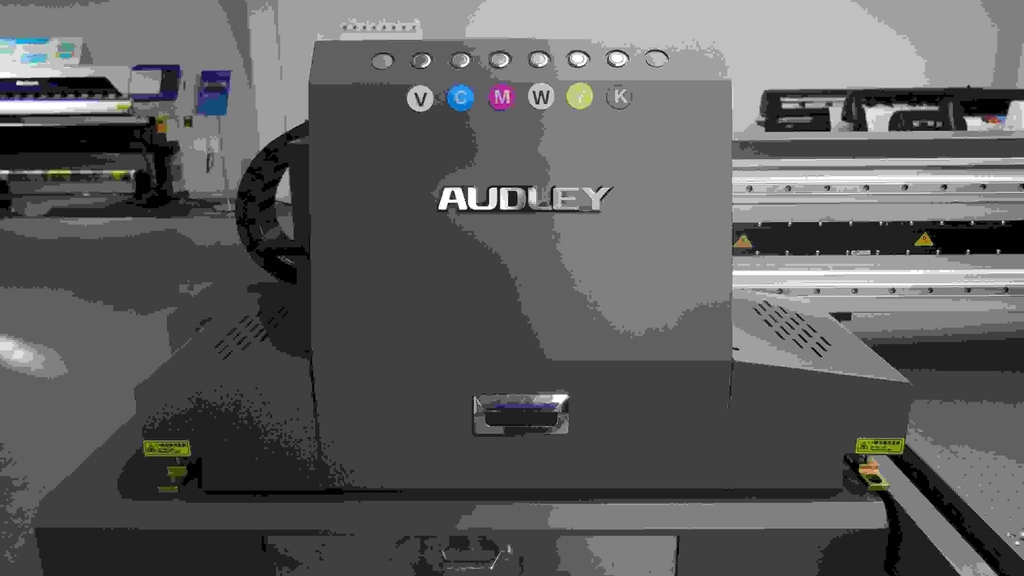

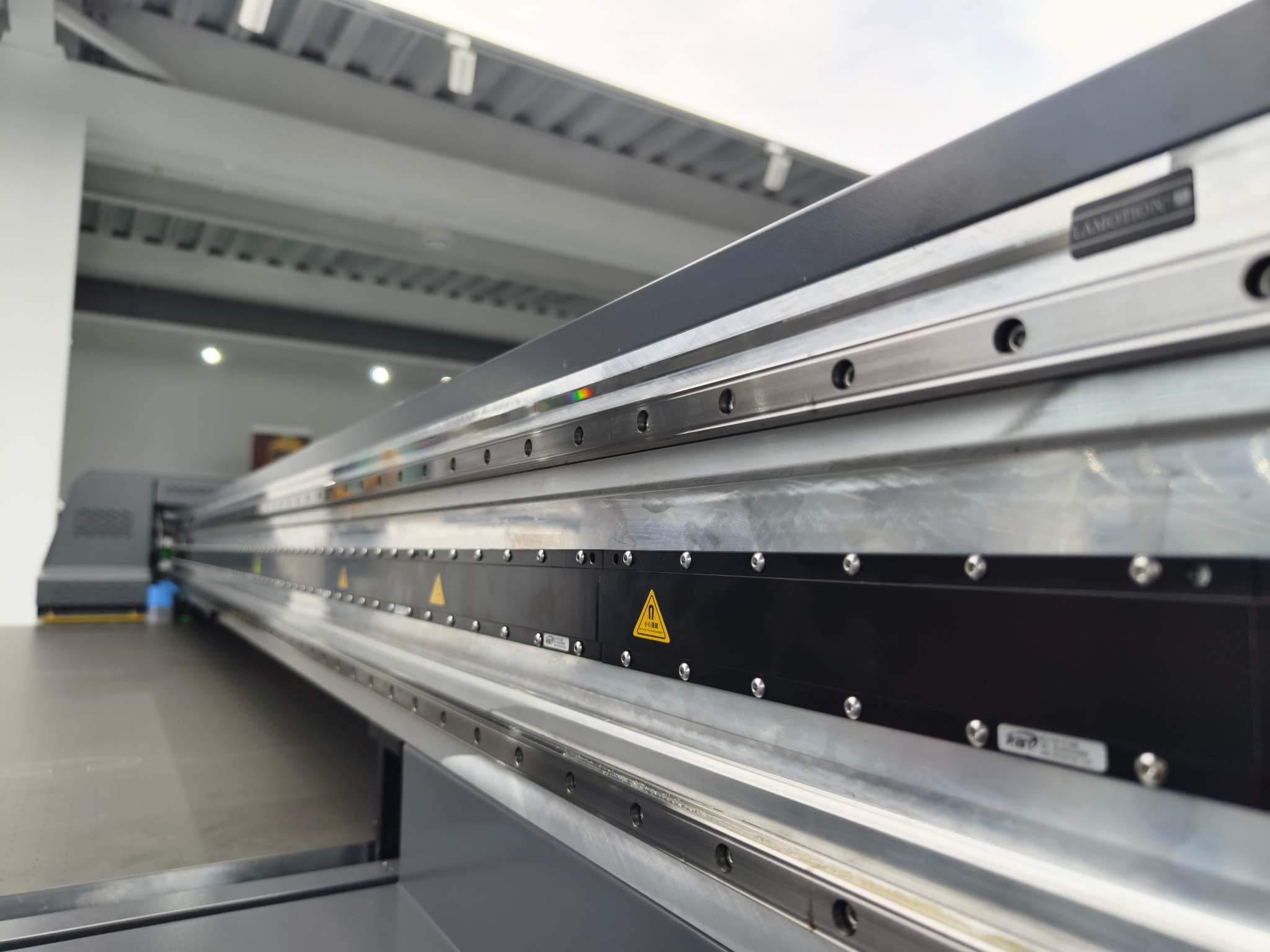

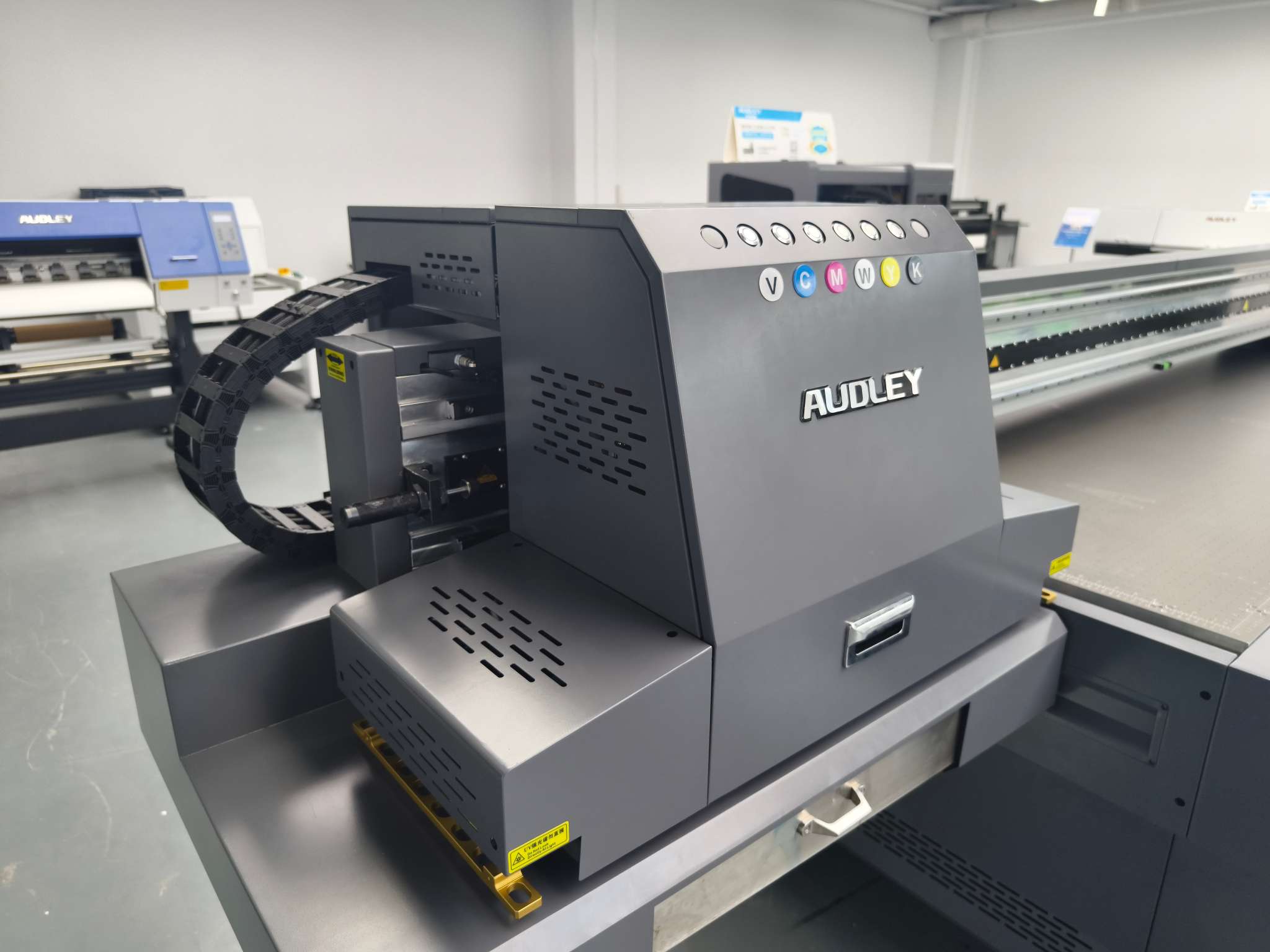

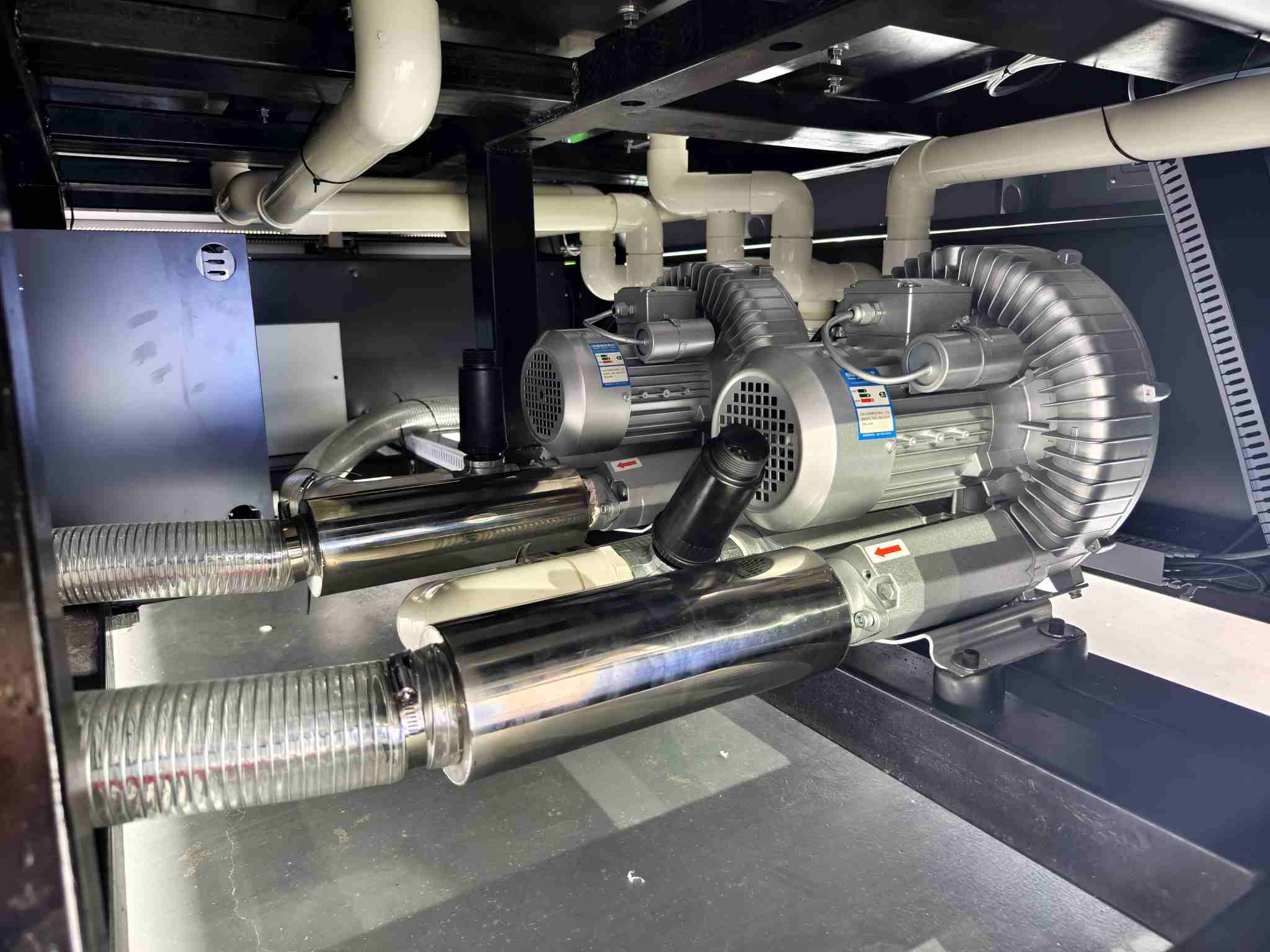

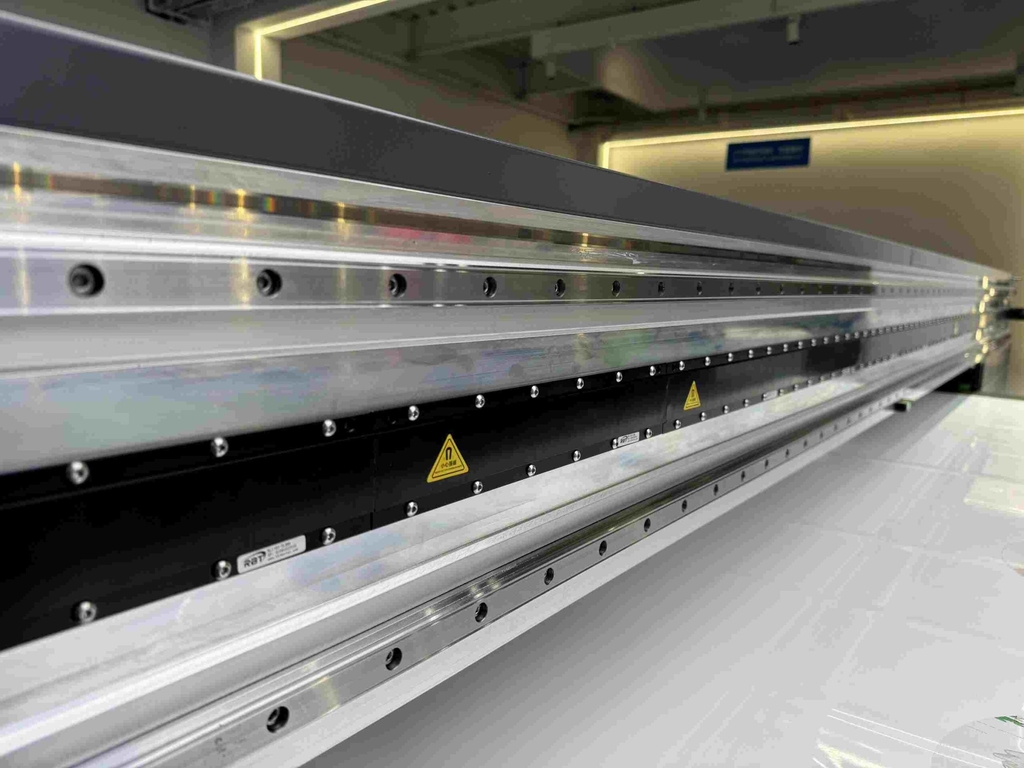

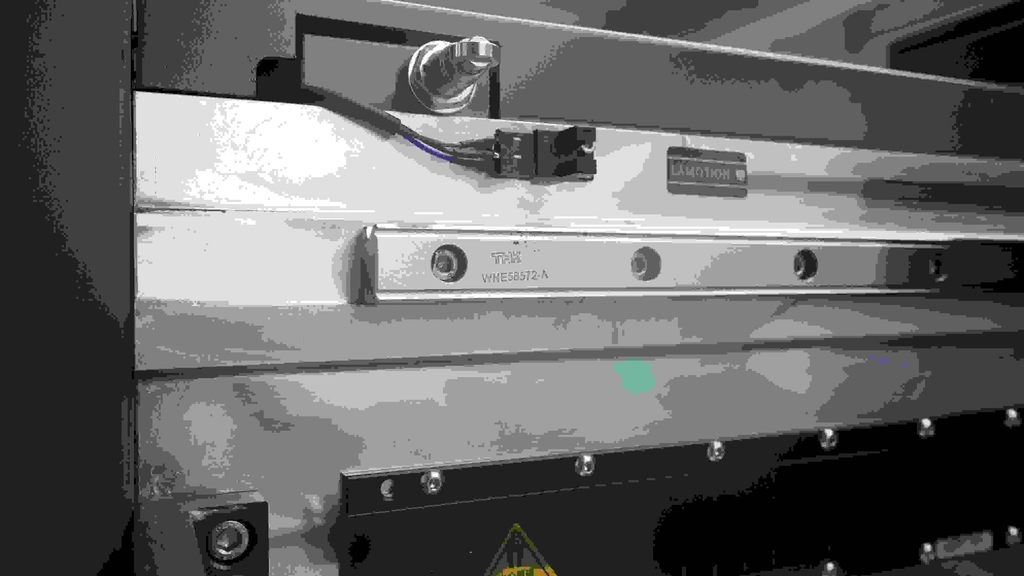

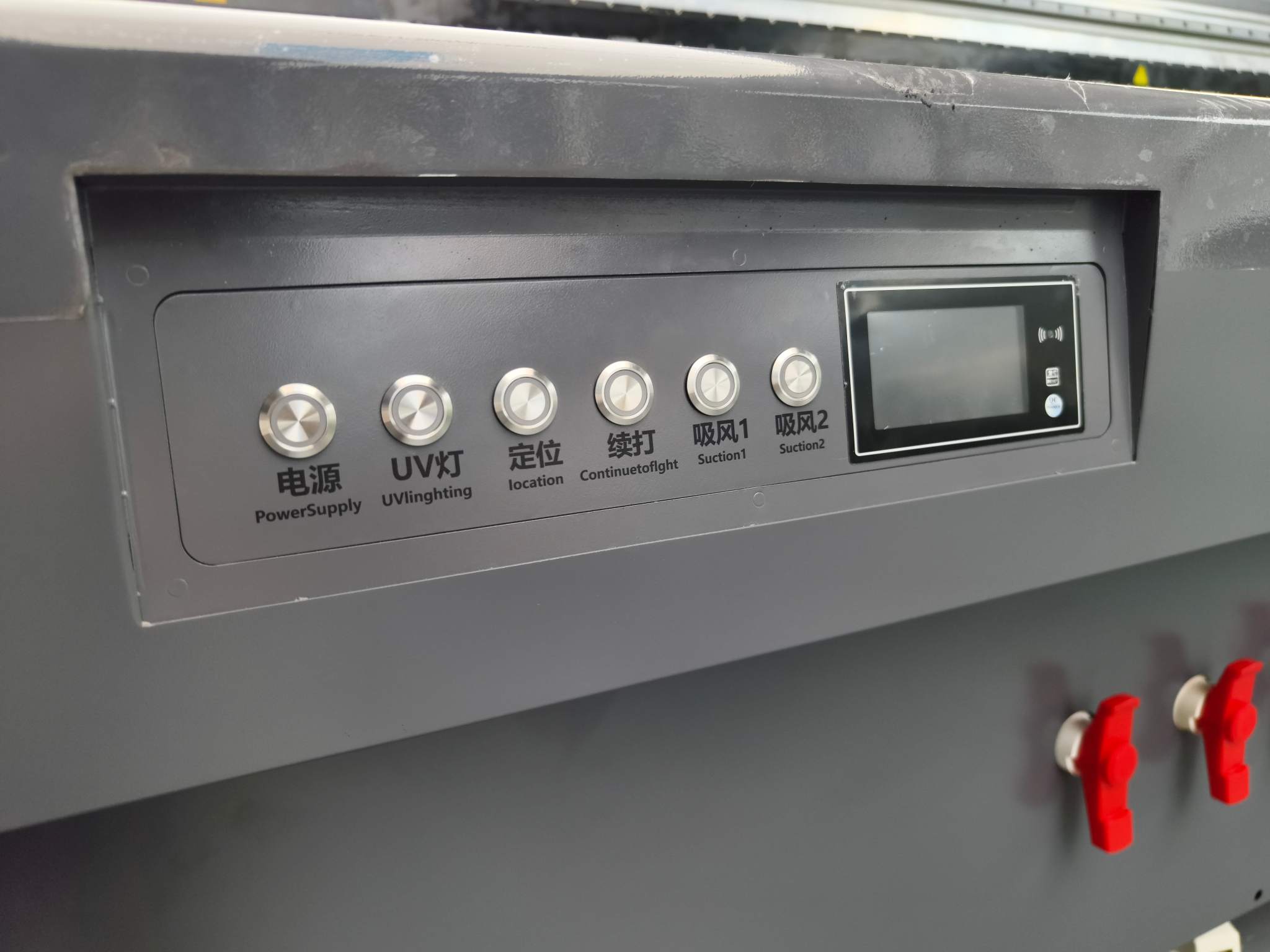

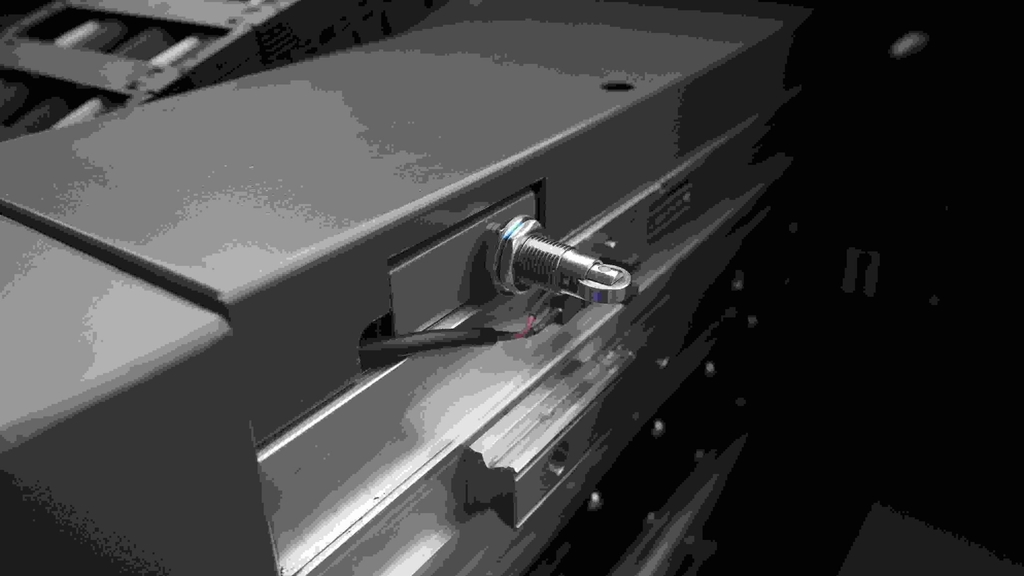

Equipment Details
